LED Colour and Wattage Switchable Batten Pack

Introducing Colour and Wattage Switchable Batten Pack

A design-driven, high-performance LED Batten to replace fluorescent battens and tube fixtures.

Replaces fluorescent tube lights

Super bright output

Internal LED driver

Wide beam angle

Glass-free, opal lens

Surface mount and suspended installation

Industrial lighting
Colour and Wattage Switchable

Point-for-point replacement

3 way colour switch

IK07 protection

Easy install via hinged tray

VDU use

Commercial lighting

Compatible with Light Boss Wireless Lighting Control

Easy Installation

In contrast to traditional fluorescent fittings with separate parts, the Batten Pack has been cleverly designed as a single piece, which incorporates the LED light source, an opal diffuser, end caps and LED driver. The fit-and-forget installation is super-quick, thanks to its unique “hinged-tray” mechanism. The bottom of the fixture opens and lowers allowing access into the rear of the fitting, to secure it into place on the wall or ceiling. Once installed, simply close the hinged-tray, and the Batten Pack is ready for use.

65%

Energy Savings

95%

Maintenance Savings

Features

SLEEK & SOPHISTICATED

Minimalistic in its design, the new Goodlight LED Batten Pack has been designed to replace outdated, traditional fluorescent tubes and batten fixtures. Ideal for a wide range of commercial and industrial environments including offices, retail stores, car parks, amenities, cold storage, refrigeration, food and drink production, healthcare and general lighting.

ULTRA RELIABLE

Delivering over 150Lm/W, the LED Batten Pack provides optimum light output and up to 65% energy savings. With an Impact Protection Rating of IK07, it is protected against 2 Joules impact.

3 WAY COLOUR AND WATTAGE SWITCHABLE

Features a unique, three-way colour and wattage switching function, allowing you to select your desired colour temperature. Choose from Daylight (5,000K) to Natural (4,000K) to Warm (3,000K) to suit your application. Ideal for stockists – three sales options within one product.

Goodlight-LED-Batten-Pack---side-angle-(transparent-+-lit-up)

Batten Pack Specs

BEAM ANGLE
120°

LAMP EFFICACY
>150Lm/W

CLASS RATING
Class I

IP RATING
IP20

LIFESPAN
50,000Hrs

First Class Performance

The new LED Batten Pack will save you up to 65% in energy savings.

4FT BATTEN PACK 5FT BATTEN PACK

3,000 – 6,000 Lumens 4,500-7,500 Lumens

6FT BATTEN PACK
5,100 – 9000 Lumens

Choose Your LED Batten Pack

Pay As You Save With Bright Plan

Fund your new LED lighting upgrade with the energy savings made each month.

CASH POSITIVE

FIXED COST

TAX SMART

FLEXIBLE TERMS

REDUCE C02

FUTURE PROOF

All Goodlight LED lamps and luminaires can be funded through our simple, manageable leasing scheme, Bright Plan Pay-as-you-Save.

Bright Plan enables businesses to fund the cost of their new Goodlight LED lighting from their operating budgets, allowing the replacement LED lighting to be paid for directly from the energy savings made, with extra left over, each month.

With no upfront cost, our Bright Plan leasing scheme has zero impact on the cash reserves of your business. Our rates are flexible and can be fixed between two to five years, making budgeting easier. At the end of the term, you own the LED lighting outright, and our ultra long-life LEDs will continue to save your business money for many more years ahead.

Moreover, rates can be significantly lower than typical bank lending. Bright Plan is tax-smart too, with fixed monthly costs 100% allowable under UK taxation rules.

Find out if your business can benefit from Bright Plan by visiting here.

Learn More

How Will You Configure Yours?

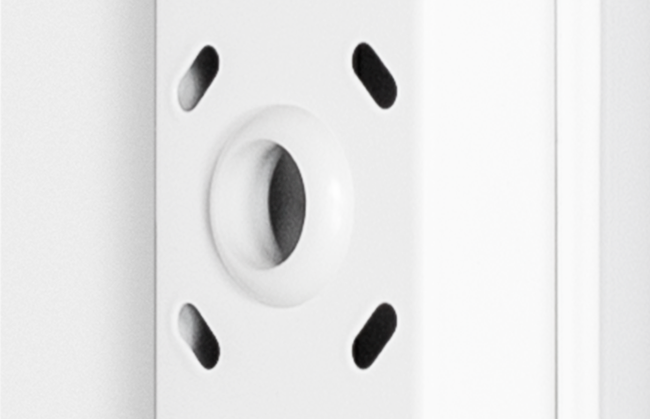

REAR WIRING ENTRY

Allows to match up to existing wiring of fluoro fittings in point-for-point replacements, with multiple wiring options – for rear and side entry, including conduit.

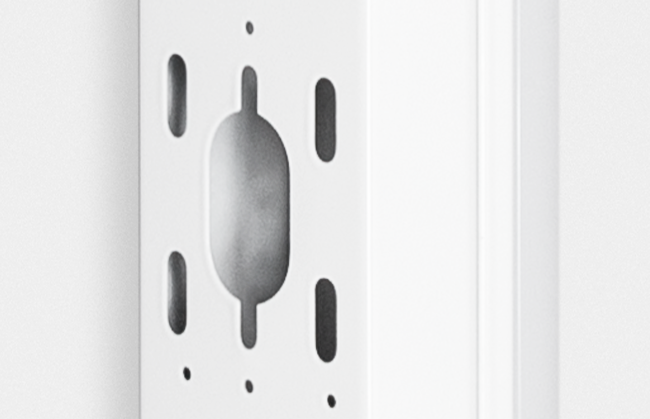

REAR KNOCK-OUTS

Features knock-outs at the rear ends of the Batten fitting. Suitable for installing onto a conduit box.

TERMINALS

Allowing for super-fast, clean installation.

Endless Possibilities

The Batten Pack has been designed with multi-colour white LEDs that produces switchable colour temperatures where the output can be selected from Daylight (5,000K) through to Natural (4,000K) to Warm (3,000K) within the same fitting. The push-fit enclosure makes it quick and easy to switch ambience to suit your application.

Batten Pack Specs

Compatible with Light Boss™

Wireless Lighting Control

The Goodlight LED Colour and Wattage Switchable Batten Pack is compatible with Light Boss™ Wireless Lighting Control. Light Boss™ puts an intuitive lighting system at the heart of your building’s operation. Automate your lighting triggered by occupancy, daylight or user preference. Light Boss™ dims down your lighting when no one is around, or when it detects natural light, and turns back on again when it is needed, for the ultimate energy efficient lighting control. Suitable for new builds and retrofits. Light Boss™ provides ‘live’ reporting on the energy consumption of all connected lighting fixtures, allowing energy management via a single dashboard – an ideal tool for complete energy performance of single or multi-site estates. Operate your lighting where it is needed, rather than at 100% continually, allowing you to minimise energy consumption by up to 95%, extend lighting lifecycles and lower maintenance costs. Payback from as little as 1.5 years. Other features include; Energy Monitoring, Emergency Light Testing, Daylight Monitoring, Service Plus, LED Fault Monitoring, Group and Scene Setting and Circadian Lighting. Suitable for offices, warehouses, retail, leisure, car parks, education, healthcare, amenity, logistics and transportation. Learn more about Light Boss™ here
