Description
85%
Energy Savings
95%
Maintenance Savings
| Energy Rating | A++ | A+ |
|---|---|
| Colour Temperature | Daylight, Natural, Warm |
| Operating Temp | -20°C to 40°C |
| Lifespan | 50,000 Hours @ L70 |
| Housing | Aluminium Die-Cast |
| Finish | Satin Grey Body | Satin White Bezel |
| RAL Colour | RAL 9003 |
| IP Rating | IP20 |
| Mounting Type | Recessed |
| Spring Clip Mechanism | Yes |
| Cut-Out (Ø) | Ø75mm |
| Weight | 0.37Kg |
| Light Source | LED Module |
| Chip Life (TM21) | L70 @ 36,000 Hours |
| Optics | Anti-Glare Lens |
| CRI (Ra) | >90 |
| SDCM | <3 |
| Beam Angle | 15° | 24° | 30° | 36° |
| Luminous Intensity Distribution | Direct |
| Light Distribution | Symmetric | Asymmetric |
| Unified Glare Rating | UGR<19 |
| Reflector | Pinhole | Elipse | Square | Wall Wash |
| Dimmability | Optional (DALI) |
| Emergency Light | Integral | Not Available |
| Dimensions | Ø75mm x 112mm |

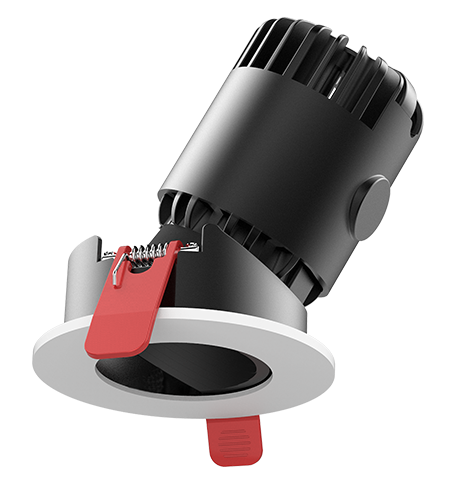

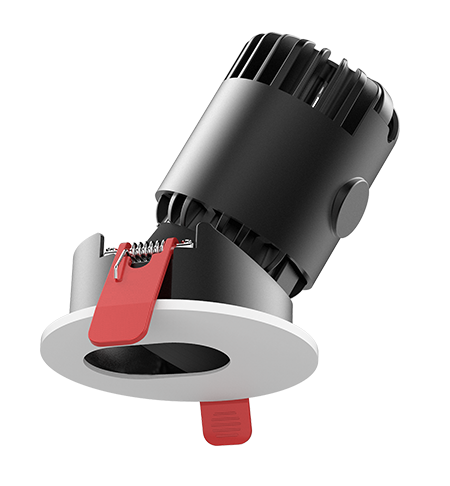

Modula LED Downlight Description
With guaranteed energy efficiencies, our professional range of indoor LED downlighters are designed to highlight interiors and blend harmoniously with their surroundings. With attention to fit, form and function these luminaires incorporate precision optics, robust thermal management and well-composed light performance. Installed directly from the box, with remote drivers allowing for fast installation and easy maintenance.
The Goodlight™ Modula LED Downlight (Recessed) is versatile, low voltage architectural downlighter with various aperture options to provide precision lighting performance using interchangeable Pinhole, Wide Spot, Square and Elliptical light guides.
Suitable for new builds plus refits and refurbs replacing energy-wasting halogen and CFL downlighters, they are protected to IP20, with a satin finish. Featuring sturdy spring clips for a tool-free installation, they slot into ø75mm apertures seamlessly.
This interchangeable LED Downlighter’s body can be adjusted up to 30° for precise, angled lighting exactly where it is required. Choose from a series of apertures which focus the light to enhance your space. With an anti-glare lens, the Modula LED Downlight meets UGR <19. With a die-cast aluminium heat sink that draws heat away from the LED Chip, heat is tackled more effectively, improving the overall performance and longevity. Suitable for accent lighting in retail stores, hotels, reception areas, architectural spaces and prestige areas.
Modula LED Downlight Features
- Available in Daylight (5,000K), Natural (4,000K), Warm (2,700K)
- Versatile, adjustable low voltage LED Downlight
- Various Aperture options
- Anti-glare design, meeting UGR>19
- Excellent thermal management
- Sturdy spring clips for easy installation
Modula LED Downlight Applications
- Accent Lighting
- Offices & Commercial Lighting
- Retail Lighting
- Hotel Lighting
- Prestige Lighting
Additional information
| Beam Angle | 15°, 24°, 30°, 36° |
|---|---|
| CRI | >90 |
