Description
85%
Energy Savings
95%
Maintenance Savings
| Energy Rating | A++ |
|---|---|
| Colour Temperature | Daylight, Natural, Warm |
| Operating Temp | -20°C to 40°C |
| Lifespan | 50,000 Hours @ L70 |
| Housing | Die-Cast Aluminium |
| IP Rating | IP20 |
| Finish | Black | White or Anthracite Bezel |
| RAL Colour | RAL 9003 |
| Mounting Type | Recessed |
| Clip Mechanism | Yes |
| Cut-Out (Ø) | 90mm, 125-135mm, 160-175mm, 200-215mm |
| Light Source | LED Module |
| Chip Life (TM21) | L70 @ 36,000 Hours |
| Optics | Anti-Glare Opal Lens |
| CRI (Ra) | >90 |
| SDCM | <3 |
| Beam Angle | 45° | Narrow |
| Luminous Intensity Distribution | Direct |
| Light Distribution | Symmetic |
| Unified Glare Rating | UGR<18-21 |
| Reflector | Highly Specular | Gold |
| Dimmable | Yes (Optional) |
| Emergency Light | Integral | Not Available |
| Wattage | 9W, 15W, 20W, 30W, 40W, 50W |
| 9W Model Dimensions | 103mm x 58mm with a Ø90mm cut out |
| 15W Model Dimensions | 144mm x 71mm with a Ø125mm – Ø135mm cut out |
| 20W & 30W Model Dimensions | 182mm x 85mm with a Ø160mm – Ø175mm cut out |
| 40W & 50W Model Dimensions | 226mm x 96mm with a Ø200mm – Ø215mm cut out |
Intra LED Downlight Description
With guaranteed energy efficiencies, our professional range of indoor LED downlighters are designed to highlight interiors and blend harmoniously with their surroundings. With attention to fit, form and function, these luminaires incorporate precision optics, robust thermal management and well-composed light performance. Installed directly from the box, with remote drivers allowing for fast installation and easy maintenance.

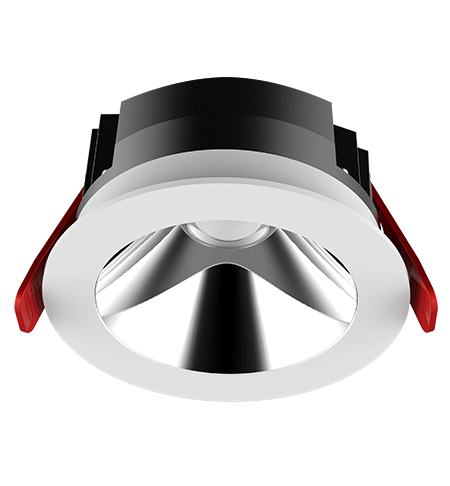

The Goodlight™ Intra is a recessed LED downlight suitable for interiors, with protection to IP20. Featuring spring clips for superfast, tool-less installation, in various wattages and cut-out sizes to suit your requirements. It is powered by a Philips Xitanium LED driver, with low ripple and THD. It can be used in refurbs and refits to replace CFL and halogen downlights, whilst providing attractive energy savings, without compensating on light output.
Lighting options range from 9W-50W, with various cut-out sizes (Ø90-215mm) and dimmability.
Intra can be customised for your interior in black, white or anthracite grey housing with a white bezel. You can choose between a highly specular, silver or gold reflector, or opt for an anti-glare lens delivering UGR 18-21. Intra is suitable for general lighting into architectural spaces, education, healthcare, retail, commercial and offices.
Intra LED Downlight Features
- Available in Daylight (5,000K), Natural (4,000K), Warm (3,000K)
- Versatile, minimalist LED Downlighter
- Replaces halogen & CFL downlighters for refits and refurbs
- Spring clips for super-fast, tool-free installation
- Dimmable options available
- Suitable for interiors
Intra LED Downlight Applications
- Architectural Lighting
- Education Lighting
- Healthcare Lighting
- Retail Lighting
- Commercial Lighting
- Offices Lighting
