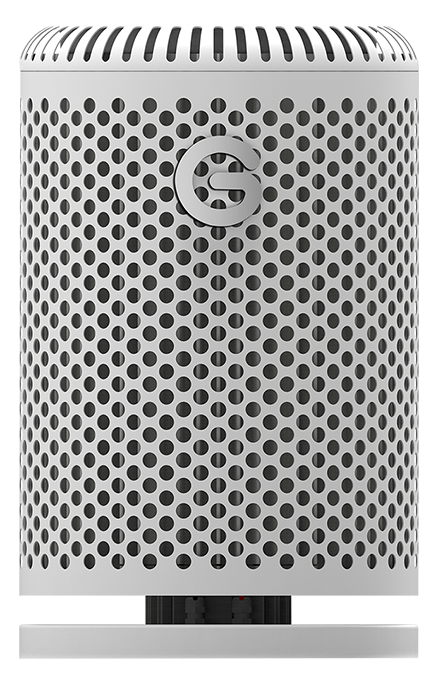

The Ultimate Performance-Driven LED High Bay
Replaces SON and metal halide high bay fixtures
combining optimum light output with unrivalled reliability.
1
2
3
1

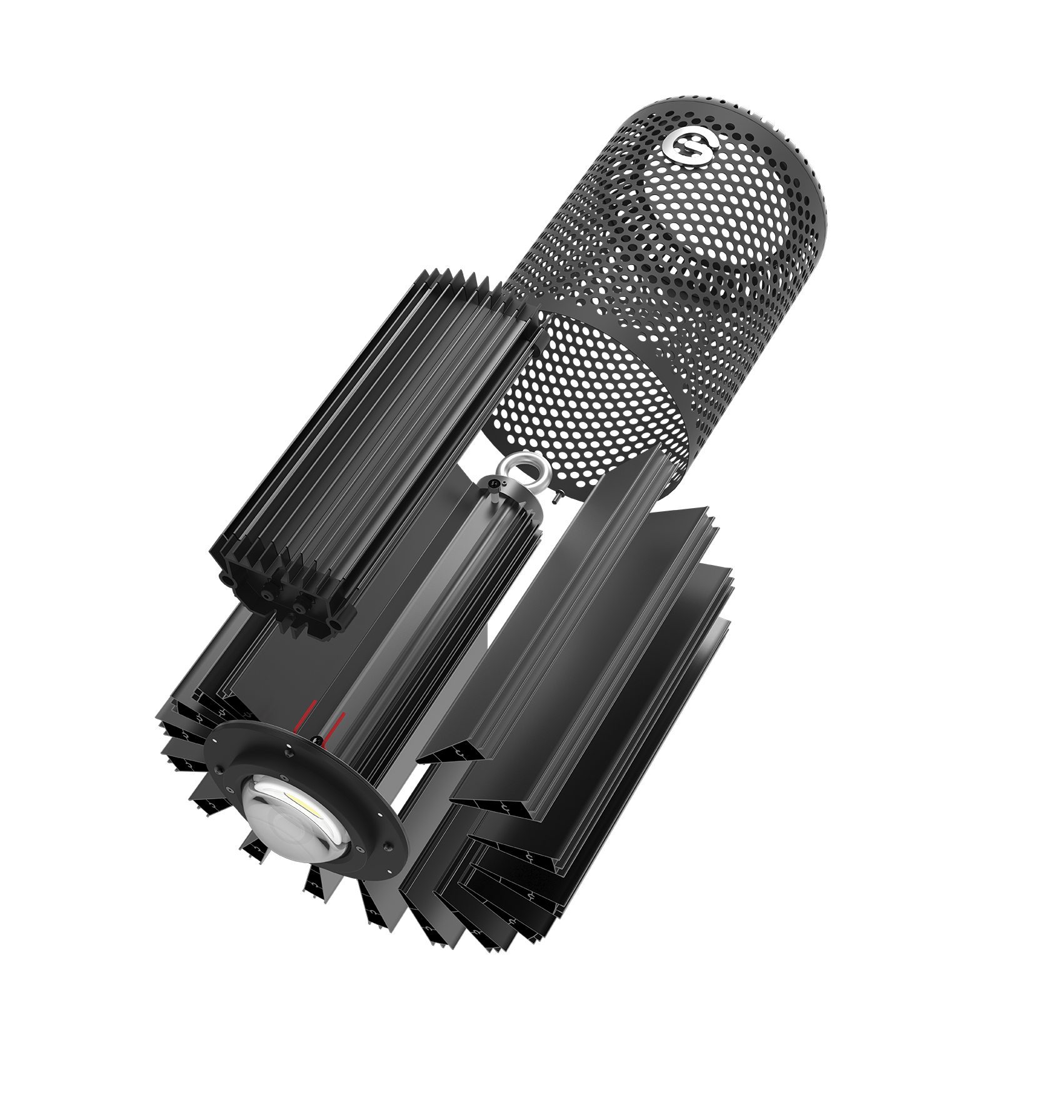

REPLACEABLE DRIVER
Controllable and future-proof. Gives users upgrade options at end of life, making it even more cost-effective and environmentally sound.
2
MODULAR HEAT SINK
Much more surface area for more efficient heat dispersal.
3
PHASE CHANGE LIQUID CORE
Unique patented cooling core with ‘phase-change’ technology enables optimum thermal management, for ultra-reliability and performance. The core rapidly transfers heat away from the LED chip, allowing the chip to run brighter, for longer.
Replaces SON and metal halide High Bays
Replaceable driver
Plug and Play LED chip
Compatible with Light Boss Wireless Lighting Control
Suitable for installation from 10m and above
Suitable for industrial lighting
150W LED High Bay
Anti-glare lens
Utilises BK7 optics
High lumen output
Phase Change Technology
3-in-1 Dimmability
Suitable for warehouse lighting
Suitable for logistics lighting
Precise, Bright Light
The GX1 Plus LED High Bay delivers an exceptional 135 Lumens per Watt, drawing just 150W. Utilising BK7 optics to distribute the light beam exactly where it is required, the reflectorless design makes this uniquely suitable for illuminating large areas in both front and back of house environments, including warehouses, storage, facilities, industrial, atria and retail.
Aesthetically, it has a striking look making it ideal for extreme heights and large spaces which require light fixtures that are in keeping with stylish or impressive interiors. Atria, mall interiors, welcoming receptions plus high-end residential or commercial ‘towers’ and skyscrapers are crying out for a fixture like the GX1 Plus. Custom paint finishes are available in any colour.
Features
COOLER
From the patented ‘phase-change’ copper core to the modular fins that provide more surface area, our unique cooling system tackles heat effortlessly.
MODULAR
With a replaceable driver, and optional plug-and-play LED chip, the GX1+ is future-proof, giving users upgrade options at end of life.
IDEAL FOR LIGHTING
Storage, Warehousing, Industrial, Atria and Retail/Sheds.
BEAM ANGLE
120°
ULTRA EFFICIENT
150W
LAMP EFFICACY
135Lm/W
IP RATING
IP65
ENERGY SAVINGS
80%

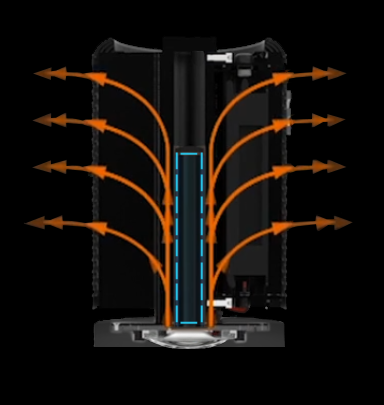

Phase-Change Technology
From the patented ‘phase-change’ copper core to the modular fins that provide more surface area,
the GX1+ LED High Bay’s unique cooliing system tackles heat effortlessly.
1
2
3
1
When the GX1 is switched on, the heat generated by the LEDs turns the liquid inside the tubes into vapour. The vapour begins moving along the tubes due to the difference in pressure.
2
The GX1’s copper core draws the liquid back towards the LEDs via capillary action, and the cycle begins again.
3
As soon as the vapour reaches a cool area of the tube, it condenses back into liquid. Heat energy is dissipated evenly through a series of aluminium fins.
Pay As You Save With Bright Plan
Fund your new LED lighting upgrade with the energy savings made each month.
CASH POSITIVE
FIXED COST
TAX SMART
FLEXIBLE TERMS
REDUCE C02
FUTURE PROOF
All Goodlight LED lamps and luminaires can be funded through our simple, manageable leasing scheme, Bright Plan Pay-as-you-Save.
Bright Plan enables businesses to fund the cost of their new Goodlight LED lighting from their operating budgets, allowing the replacement LED lighting to be paid for directly from the energy savings made, with extra left over, each month.
With no upfront cost, our Bright Plan leasing scheme has zero impact on the cash reserves of your business. Our rates are flexible and can be fixed between two to five years, making budgeting easier. At the end of the term, you own the LED lighting outright, and our ultra long-life LEDs will continue to save your business money for many more years ahead.
Moreover, rates can be significantly lower than typical bank lending. Bright Plan is tax-smart too, with fixed monthly costs 100% allowable under UK taxation rules.
Find out if your business can benefit from Bright Plan by visiting here.
5 Year Guarantee
The GX range of LED High Bays are rated for 50,000 hours and supported by a 5 Year Guarantee against failure. We are so confident in the quality and performance of our products which is why all of our LED lighting is backed by a 5 Year Guarantee, supported by all of the live Goodlight LED installations that have already exceeded 5 Years. Learn more about our 5 Year Guarantee here.
Compatible with Light Boss™
Wireless Lighting Control
The Goodlight GX1 Plus LED High Bay is compatible with Light Boss™ Wireless Lighting Control. Light Boss™ puts an intuitive lighting system at the heart of your building’s operation. Automate your lighting triggered by occupancy, daylight or user preference. Light Boss™ dims down your lighting when no one is around, or when it detects natural light, and turns back on again when it is needed, for the ultimate energy efficient lighting control.
Suitable for new builds and retrofits. Light Boss™ provides ‘live’ reporting on the energy consumption of all connected lighting fixtures, allowing energy management via a single dashboard – an ideal tool for complete energy performance of single or multi-site estates. Operate your lighting where it is needed, rather than at 100% continually, allowing you to minimise energy consumption by up to 95%, extend lighting lifecycles and lower maintenance costs. Payback from as little as 1.5 years.
Other features include; Energy Monitoring, Emergency Light Testing, Daylight Monitoring, Service Plus, LED Fault Monitoring, Group and Scene Setting and Circadian Lighting. Suitable for offices, warehouses, retail, leisure, car parks, education, healthcare, amenity, logistics and transportation.

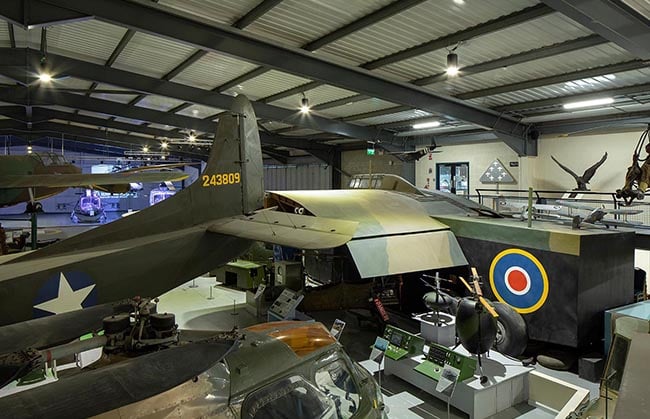

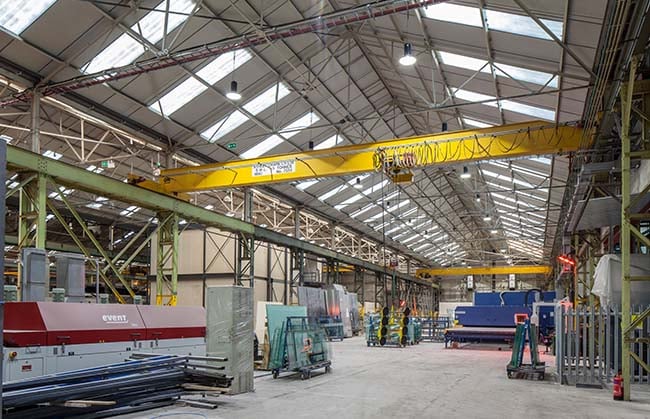

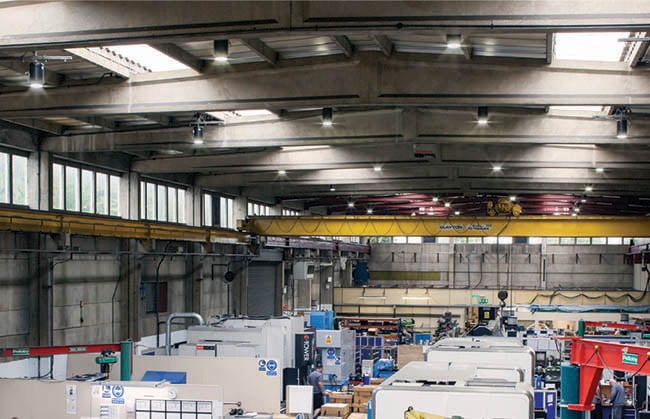

GX1 Plus LED High Bay Installations
