Description
75%
Energy Savings
95%
Maintenance Savings
| Colour Temperature | Daylight, Natural |
|---|---|
| Wattage | 80w, 120W, 200W, 240W |
| Operating Temp | -30°C to 50°C |
| Beam Angle | 100° |
| Lumens per Watt | 140Lm/W |
| CRI | >75Ra |
| IP Rating | IP66 |
| Finish | Matt Black |
| Housing | Aluminium & PC |
| Dimmable | DALI, 0-10V |
| Lifespan | 50,000 Hours |
| 80W Model Dimensions | 307 x 188 x 90mm |
| 120W Model Dimensions | 318 x 322 x 135mm |
| 200W Model Dimensions | 318 x 322 x 135mm |
| 240W Model Dimensions | 565 x 322 x 135mm |
| Wireless Lighting Control | Yes – Compatible with Light Boss |

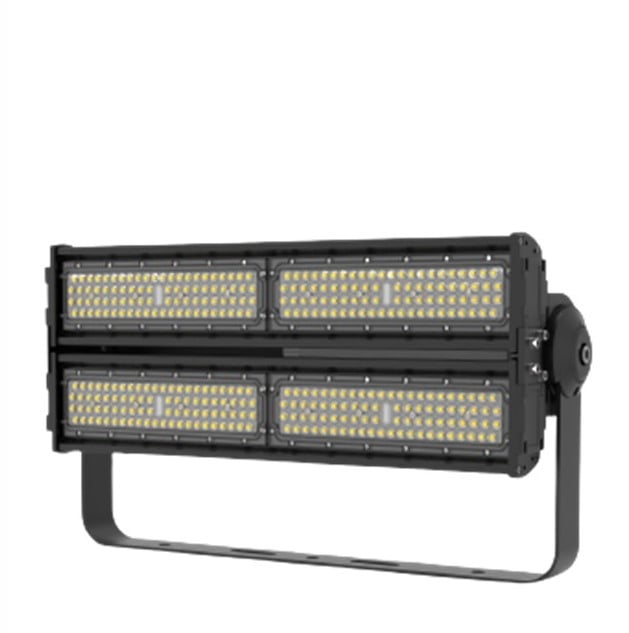

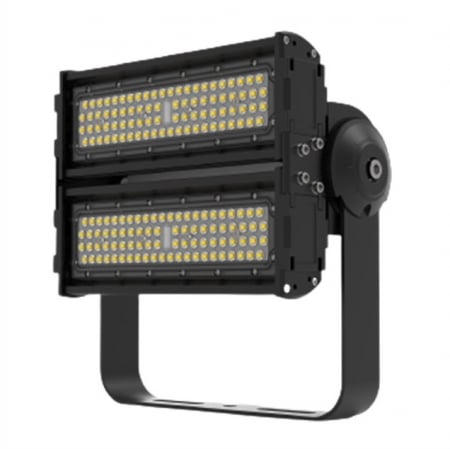

GX1 LED Low Bay (IP66)
The latest generation of high powered LED Low Bays on the market
The Goodlight™ GX1 LED Low Bay is the ultimate LED solution for traditional SON and metal halide low bay and floodlight fixtures. Featuring a 100° beam angle and delivering a bright output of 140Lm/W, the GX1 LED Low Bay provides even light spread with no shadowing. Savings of up to 75% in energy can be made and further 95% in maintenance.
Rated to IP66 to prevent dust and water ingress, the GX1 LED Low Bay is suitable for installing into applications from 4m and above in a variety of applications including industrial, warehouses, storage, external buildings, car parks, atria and retail/sheds. The GX1 is available in a variety of wattages including 120W, 180W, 240W, 280W and 360W.
GX1 LED Low Bay + Wireless Lighting Control
The Goodlight GX1 LED Low Bay (IP66) is compatible with Light Boss Wireless Lighting Control. Light Boss puts an intuitive lighting system at the heart of your building’s operation. Automate your lighting triggered by occupancy, daylight or user preference. Light Boss dims down your lighting when no one is around, or when it detects natural light, and turns back on again when it is needed, for the ultimate energy efficient lighting control. Suitable for new builds and retrofits. Light Boss provides ‘live’ reporting on the energy consumption of all connected lighting fixtures, allowing energy management via a single dashboard – an ideal tool for complete energy performance of single or multi-site estates. Operate your lighting where it is needed, rather than at 100% continually, allowing you to minimise energy consumption by up to 95%, extend lighting lifecycles and lower maintenance costs. Payback from as little as 1.5 years. Other features include; Energy Monitoring, Emergency Light Testing, Daylight Monitoring, Service Plus, LED Fault Monitoring, Group and Scene Setting and Circadian Lighting. Suitable for offices, warehouses, retail, leisure, car parks, education, healthcare, amenity, logistics and transportation.
To integrate Light Boss, simply choose your GX1 LED Low Bay / Floodlight(s) from the options above and select ‘Yes’ next to ‘Wireless Lighting Control’ to submit your quote request.
GX1 LED Low Bay (IP66) Features
- Available in Daylight (5.7K), Natural (4.1K)
- Replaces traditional low bay and floodlight fixtures
- High lumen output 140Lm/W
- Even light spread with no shadowing
- 50,000 hour lifespan
- Instant on
- Glare-free
- Flicker-free
GX1 LED Low Bay (IP66) Applications
- Storage & Distribution
- Engineering
- Sports/Leisure
- Industrial
- Atria
- Food & Drink Production
- Retail/Sheds
- External Buildings
- Car Parks
